Material
Handling Belt Conveyors
Available in
two sizes: 16" & 24"

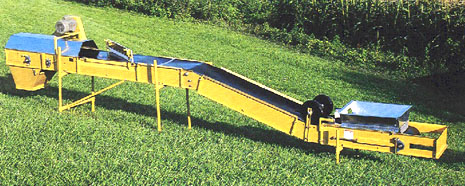

| The Zabel Equipment
Models ZC1600 & ZC2400 Belt Conveyors will handle
a large volume of material for little cost. This
conveyor is designed to be “inexpensive”, not “cheep”.
With formed 12ga. steel sections, spanning 30’ is
no problem. Greaseable 1-1/4” bearings on the drive
and tail drums provide for years of trouble free
service. You have a choice of 3 different drive
types; standard roller chain and sprocket reduction,
right-angle worm gear reducer, and direct drive
hydraulic motor. Options include; covers, hopper,
plow-off, adjustable incline joint, adjustable decline
joint, 5degree decline section, external and internal
belt scrapers, rotary brush, reverse kit, smooth
belting, ruff top (crescent) belting, cleated belting,
and support brackets. A better built conveyor for
the money will be hard or maybe impossible to find. |
Three optional drive types to best meet your material
handling needs:
Standard
chain and pulley drive is used in most
units. Automatic chain tightener prevents
unnecessary maintenance. Right or
left side drive is available to fit any
application. |
Compact
hydraulic drive is available on all
models. Hydraulic drive offers variable
belt speeds to best suit different type
of materials. |
Optional
gear reduction drive is totally enclosed,
a big plus for industrial applications.
The compact size and oil-bathed gears are
other big advantages. |
|
|
Heavy
greasable bearings are used
throughout the
drive and idle. This
prolongs bearing life and
prevents
costly breakdowns.
Optional
power brush cleans material
off belt, preventing
carry back of material
and providing
a cleaner work place.
Drive
rollers are covered with heavy
rubber lagging
to prevent belt slippage.
Crowned design
of rollers assures
center belt tracking.
As
shown in this idle roller, the unique
open-wing
design helps prevent material
build-up on
the roller. Also, note the sturdy construction,
for
years of reliable service. |
|
 |
Optional
6 degree decline section allows you to maintain
the concave in the belt while declining. This
keeps the material in
the center of the belt. Sections are 12" long
and can be assembled with a 1' or 2' section to
attain up to 42 degrees of incline.
|
-
Zabel Equipment Belt Conveyer Options -
| -16"
Model 1625 |
-Hopper |
-Downspout |
| -24"
Model 2400 |
-Covers |
-Power
Brush |
| -Chain
Drive |
-Crescent
Belt |
-Plow
Off (16" only) |
| -Hydraulic
Drive |
-6
Degree Incline |
-Support
Brackets & Legs |
| -Enclosed
Gear Reduction Drive |
-Belt
Scraper |
-Right
Hand or Left Hand Drive |
| -Decline
Section |
-Diverters |
-Reversing
Kit |
| -Incline
Section |
-Downspout
Adapters (Also with Scraper) |
-1',
2', 4', and 8' Sections |
-
Zabel Equipment Belt Conveyer Features -
| -Large
Capacity |
-Low
H.P. Requirements |
| -Simple
Design |
-Easy
to Maintain |
| -Easy
to install, only 4 bolts per section |
-Heavy
12 gauge construction |
| -Compact
Drive & Idle allows installation where
there
is limited space |
-Reversible
so it may save on additional unit |
| -No
material separation: as material simply lays
on belt
until dropped off. No paddles dragging
material in trough to gum up in certain kinds
of material. |
-Standard
sections in 1 - 2 - 4 - 8 foot can make any
length conveyer from 8 feet to 150 feet. |
| -Less
installation time. So easy to install
anyone can assemble without any special tools
or experience. |
-Slower
belt speed means less H.P. and less wear to
give longer life and less maintenance for
years of trouble free operation. |
| -The
industrial designed belt conveyer will do
your conveying job better at a lower cost
over the years. |
|
Click

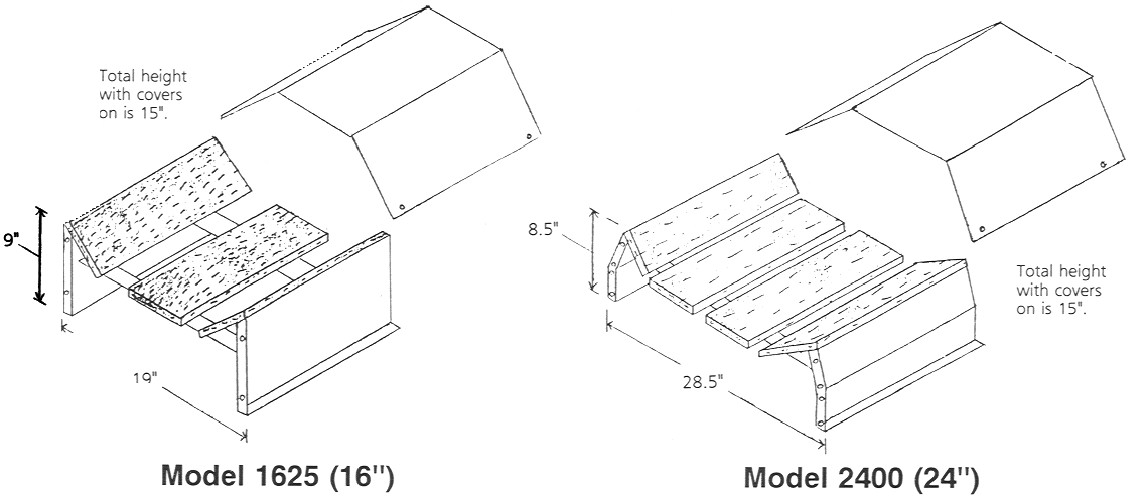

here for a Dimensions Drawing of our conveyors |
